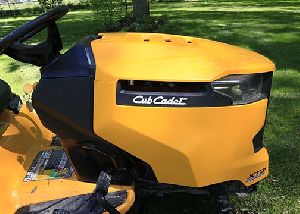

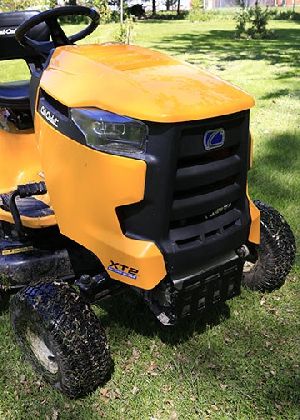

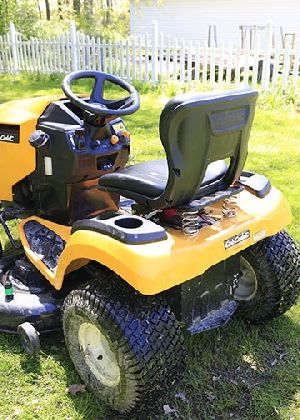

Cub Cadet LX 46



  • Electric PTO
  • 46" stamped, twin-blade cutting deck
  • 24 HP Kohler 7000 Series OHV engine with Smart-Choke



Safety Systems :- Neutral Start, operator presence, reverse safety switch, brake pedal lock, RevTek reverse mowing technology



Warranty:- 3-year unlimited hours (includes powertrain) & 5-year chassis & front axle unlimited hours/limited lifetime fabricated deck shell


Specifications

Arm Rests Standard
Engine Type 24 Hp Professional-grade Kohler 7000 Series Ohv
Cylinders Twin
Material Cast-iron Sleeve
Lubrication Fully Pressurized Automotive-style Oil Pump W/ Spin-on Oil Filter
Powertrain Tuff Torq Foot-controlled Hydrostatic Transmission (k46)
Rear Differential Lock N/a
Engine to Transmission Heavy-duty Belt
Cruise Control Soft Touch Engagement
Transmission Housing Cast Aluminum
Rear Axle 3/4
Steering/turning Radius Optimized Steering System, Manual Sector and Pinion/16
Front Pivot Bar Heavy-duty Cast-iron (5-year Limited Warranty/unlimited Hours)
Front Axles Heavy-duty 3/4
Ball Joints Fully-adjustable/automotive-style
Hood Front Pivot, High Impact with Quick Removal Design
Frame Fully Robotically-welded Frame with New E-coating Corrosion Defense System (5-year Limited Warranty)
Bumper Single-tube
Battery Voltage 300 Cold Crank Amps
Charging System Flywheel Alternator - 12 amp regulated
Headlights LED High Illumination

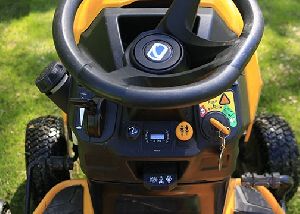

System Monitor Package Digitial Hour Meter/service Minder, Oil, Battery, Brake and Pto Start Sequence
Cub Connect N/a
Brakes Automotive-style Disc
Pto Clutch Electronic Fingertip Engagement

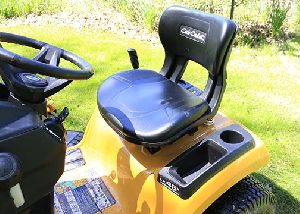

Seat Cub Comfort High-back Seat with 10 Degree Incline and Slide
Length 68
Width 54
Height 42.5
Tires (front/rear) 15
Tire Tread Multi Trac
Forward Speed 5.5 Mph
Reverse Speed 3.1 Mph
Fuel Tank Capacity 3 Gal. Easy Fill, Rustproof
Engine Oil Capacity 2.0 Qt.
Wheelbase 47
Estimated Weight 600 Lbs.
Deck Lift Lever/12-position/spring-assisted
Cutting Width/blades 46
Deck Construction Stamped
Deck Cutting Height 1
Anti-scalping Wheels (front/rear) 2 Ball/2 Narrow
Mulch Kit Optional
Deck Spindles 3/4
Deck Pulleys Split steel spindle pulleys/oversized heavy-duty idlers
Deck Attach/removal Quickattach™ (no Tools Required)
Deck Wash Patented Smartjet High-pressure Deck Washing System
